Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film

Name: Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Brand: SZ PUFENG PACKING MATERIAL LIMITED
SKU: 631S
Price: 25.00 USD
Availability: InStock

Marka Adı:	Teraoka
Model Numarası:	631S
Adedi:	1roll
fiyat:	USD1~USD50
Teslim Zamanı:	3~5working days normally
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

China

Brand:

Teraoka

Model:

631S

Color:

Multicolor

Base material:

Adhesive:

Acrylic

Adhesive faec:

Single sided

Thickness:

0.03/0.05/0.15mm

Feature:

Electrical insulation

Specification:

Customizable

Packaging Details:

packing in cartons

Supply Ability:

10000roll/week

Vurgulamak:

Polyethylene Film Insulation Tape

Electrical Insulation Tape 631S

Ürün Tanımı

Teraoka 631S #12 #25 #100 Polyethylene film tape Electrical insulation tape

Product Description:

The 631S series is an insulating tape that has acrylic adhesive coated on a polyester film.

Product Features:

Heat resistance

Electrical insulation property

Chemical resistance

High adhesion

Soft and comfortable

Remove without leaving any remaining adhesive residue

Product Applications:

The outer and inner insulation of the transformer

Insulation and fixation of electronic components: LCD liquid crystal display, lithium-ion televisions, computers, copiers, fax machines, telephones, DVDs, instruments and meters

PRODUCT PARAMETERS

	#12	#25	#100
Thickness(MM)	0.03	0.05	0.15
Color	Transparent, White, Blue, Green	White, Black, Blue, Red, Yellow, Green, Transparent	Transparent
Width(MM)	1000	1200	1200
Length(M)	50	30 , 50	20
Peel adhesion (N/25mm)	8.58	12.26	23.29
Tensile strength(N/25m)	39.2	95.6	343
Elongatio(%)	80	80	80
Breakdown voltage(KV)	4	6	14.6
Standards and Certifications	UL temperature class 130°C	UL temperature class 130°C UL746A CTI≧600V	-

Note:

The #12 and #25 are also ideal for use in winding as it is hard for the terminal to peel off

#100 is suitable for insulating spacers

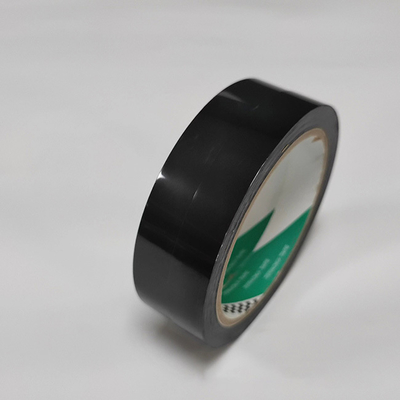

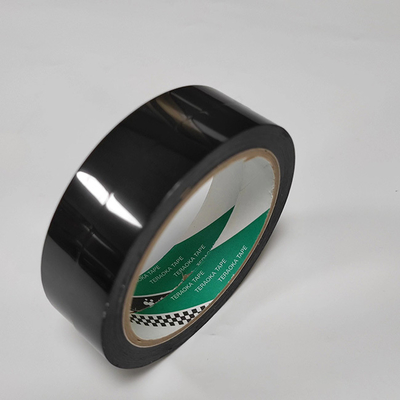

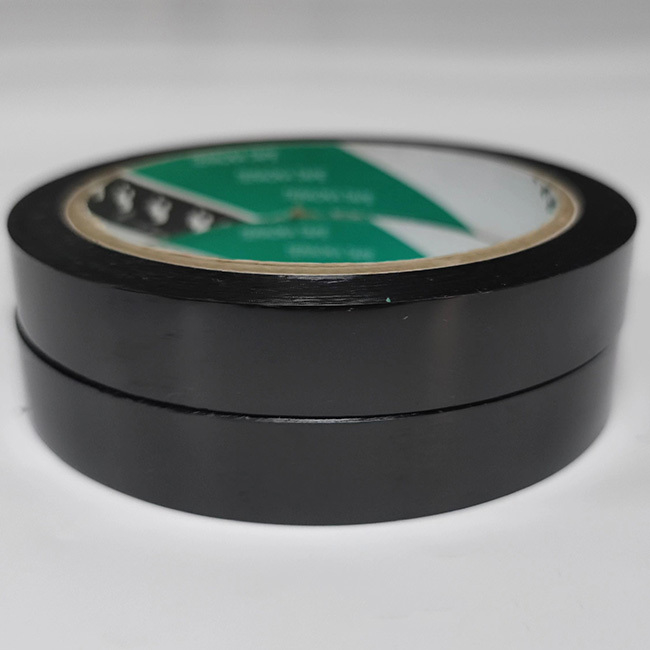

PRODUCT DISPLAY

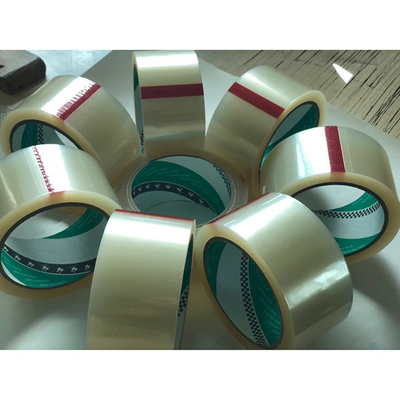

PACKING OF TRANSPORT

Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film 2

COMPANY PROFILE

PUFENG is a professional die-cutting processing company, established in 2014.We have professional die-cutting materials and affiliated factories. We will do our best to solve all your bonding problems and provide you with professional solutions and suitable products.

Main products: viscose products, protective films, insulating products, foam and sponge. There are various brand partners: 3M, TESA, NITTON, SONY, TERAOKA, INOAC, ROGERS, etc.

OUR SERVICES

1.Your enquiries about our products will be answered within 12 hours.

2.OEM or ODM projects are very welcome.

3.We can die cut or design products according to your requirements.shock-proof, shading, etc.

4.Provide perfect after-sales service, if you have questions, please contact us.

5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.

2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.

3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.

4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.

5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.

6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
